70cm Slim-Jim Antenna 400-449MHz

RRP £50.00

£41.00 inc. tax

Description:

NEW extra wide bandwidth with anti detunning bracket

400 MHZ to 449 MHZ with swr under 1.1.5

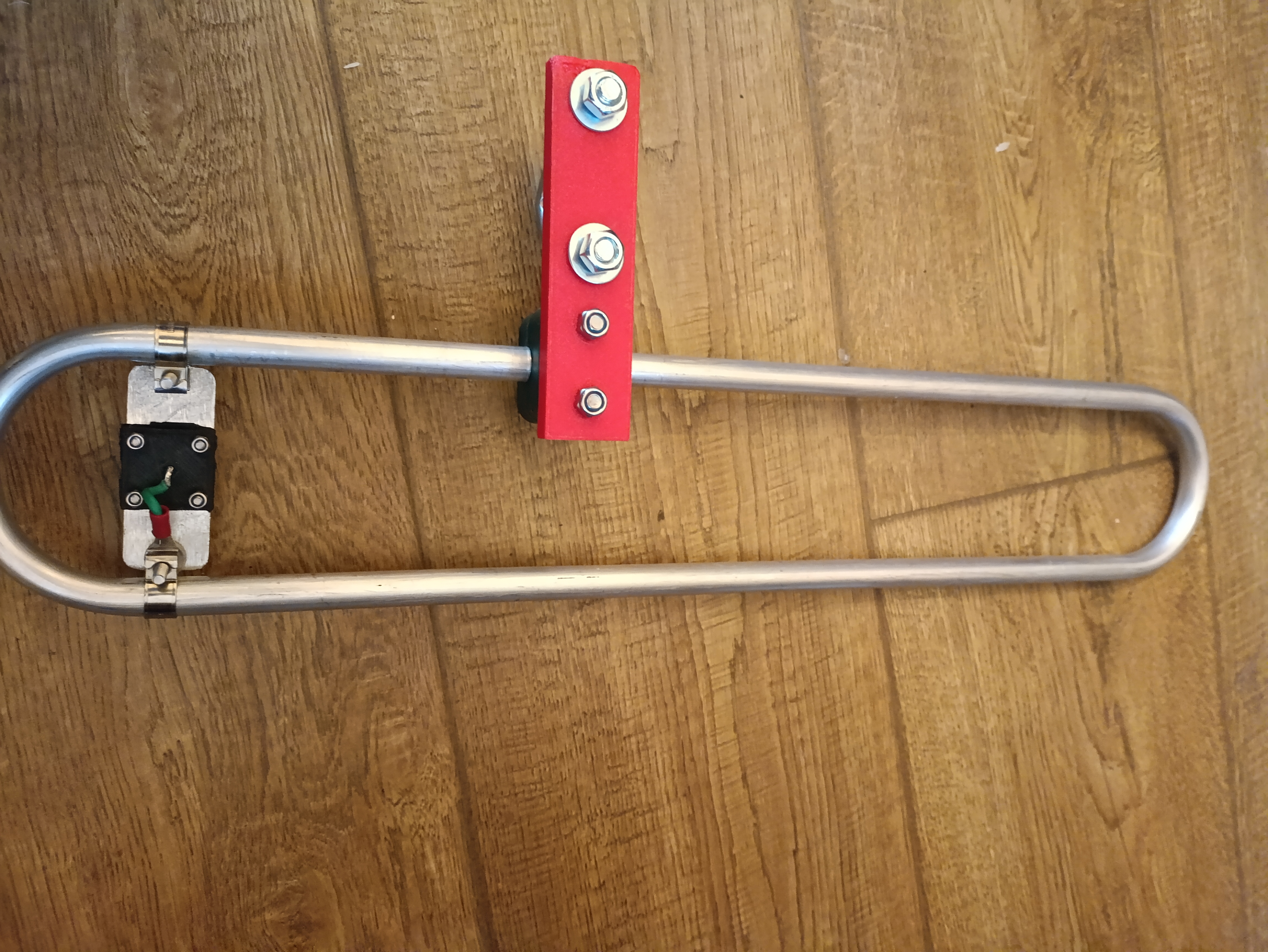

70cm Slim-Jim. Made in the UK by Superyagi Antennas.

Super heavy duty and commercial grade.

100 mph+ and ice storm survival for extreme conditions.
Sold to many commercial radio stations and military installations worldwide.
Using no less than aircraft grade, 16s gauge wall thickness for high power, and 20 years + usage
Great for either ham or PMR radio 446 usage.
Maritime bespoke frequencies catered for on request.
Computer designed with a single continuous single element for minimum losses each
An order comes preset to your centre frequency on request free of charge.

Comes as standards with a N-TYPE socket.

Invoices available, please add a note with your details and we can process.

Repeaters or hot spots nodes etc. This is ideal for that.

Easy connect to a handy talkie increase range dramatically no ground plane required.

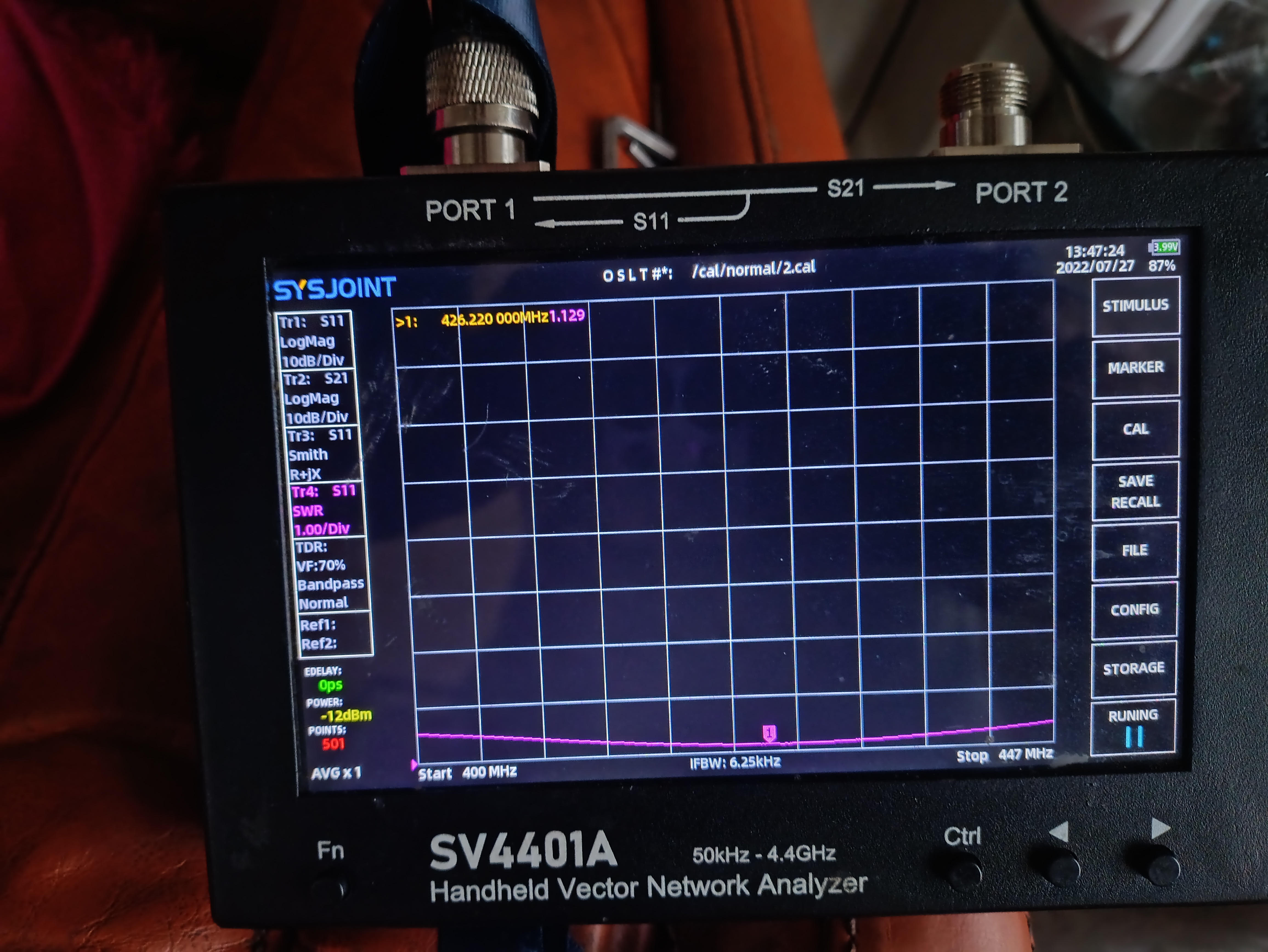

Each antenna pre-tested and set up with a spectrum analyser fitted with return loss bridge

To your pre-requested frequency free of charge. Computer plots also on request.

What's special about this ANTENNA you say... Read on

Described as A Jpole on steroids...

2.5kw handling power... try putting more than 400 watts into your fibreglass co-linear and see what happens...

Ideal for a long range tx/rx or repeater/ beacon station.

(Most of the radiation is directed toward the horizon making the "gain" appear much greater than other vertical type antennas it has been compared to with a 5/8 colinear. and this antenna has. 50%. more radiation on the horizon where it matters. than 2x 5/8 colinear at the same height...

Ideal repeater beacon antenna.

Only 4ft3 tall.

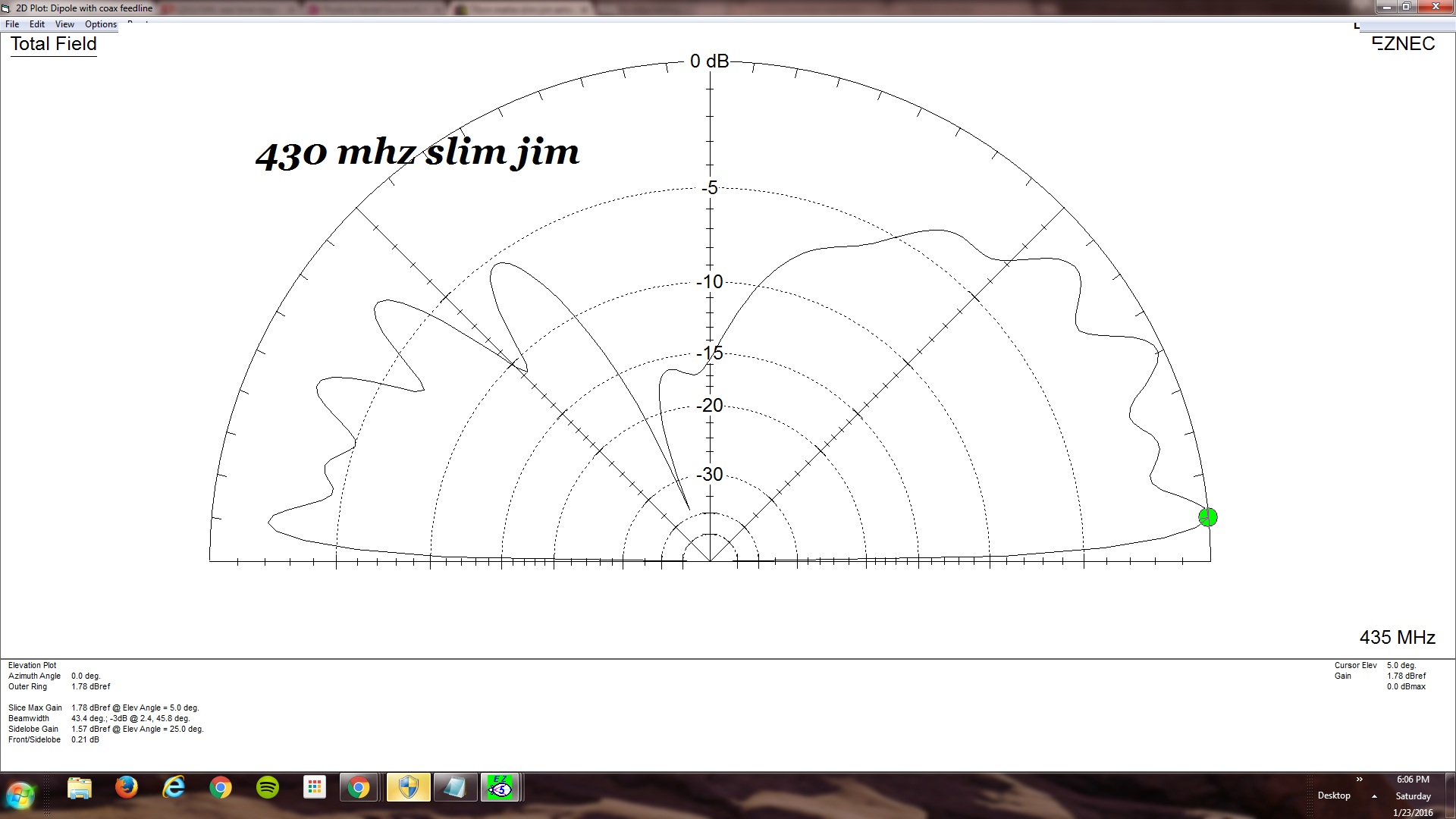

Gain is 6 dBi, 7-degree takeoff angle at 1 wavelength above ground (0dB free space).
Bandwidth is 10MHz.
Pretuned to 433MHz. Just connect the coax and transmit!
Heavy duty construction out of 1/2 inch aircraft aluminium tubing.
PMR 446 MHz available. Please ask for more information.

Feedback from a customer:

"Hi!
Just wanted to say how well the 70cm Slim Jim is performing here locally. I`m looking forward to the 2m version coming to me soon.. And! As you know I just love the inverted V for 2,4,6m. Anyway! I just purchased an 8M mast from moonraker and I`m going use it portable out in the garden. Hence why I purchased the SlimJim 2m antenna this week! It will surely boom out! and it`s a safer way to purchase the slim jim as it will fit 100% to the mast more than any small vertical will...I think all your antennae are good! Can`t be faulted in design and craftsmanship. Over time I`ll be buying a few more as funds allow! lol MM6ECO"

Details:

70CMSJA420446 :Product Code

5 :Units in Stock

New :Product Condition
